trunking rail

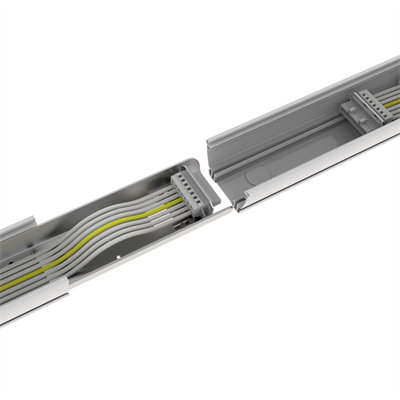

The LS6870 Linear Trunking Rails provide easy installation. Each part of the trunk rails can simply be pushed together, quick and easy!

Material: Alu 6063 + Copper Wires 2.5mm²

Pre Mounted Wires: 3/5/7/8 Cores Varous

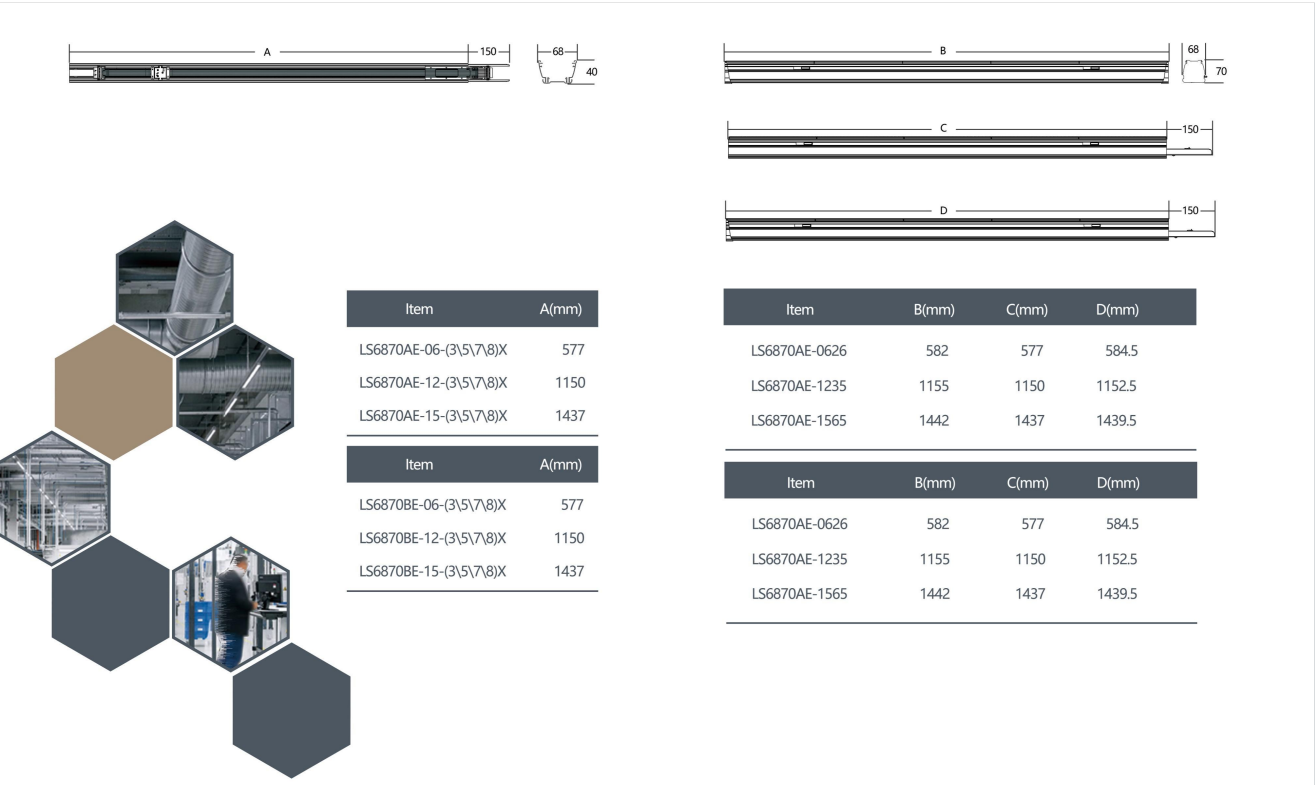

Length: 577mm,1150mm, 1437mm Trunking

Color: Black, White

Send Email:

Products DETAILS

trunking rail


OKLED’s linear trunking system is an efficient and flexible lighting solution that can be used in a variety of applications including industrial, commercial and office environments. Its seamless link capability makes it ideal for installation in warehouses, offering a range of lighting options to meet different requirements. With a variety of luminaire elements, optics and functional modules, linear trunking systems are versatile lighting systems that deliver outstanding performance.
LS6870 LED lighting is designed to be optimized for commercial and industrial lighting applications to help not only improve safety and energy savings, but also help increase productivity and efficiency.
With LS6870 products, installation is a breeze and takes only 50 seconds to complete. This advantage brings more convenience to our customers.Choose OKLED for your lighting needs and enjoy the benefits of our efficient and versatile linear trunking systems and LS6870 products



Model No.
LS6870
Outer Dimensions

1437MM

Dip Switch to
35W/40W/45W/50W/55W/60W/65W/70Woptional
Input Voltage
220-240V AC
Input Current
0.4A max
Mains Frequency
50/60HZ
PF (at 230 V, 50 Hz)
0.9
Dimming
0-10V,dali2
Type of Protection
IP20
Ambient Temperature
-25-40℃
Storage Temperature
-40-85℃
Emergency Option
Support external emergency or built-in battery
Warranty
5 years

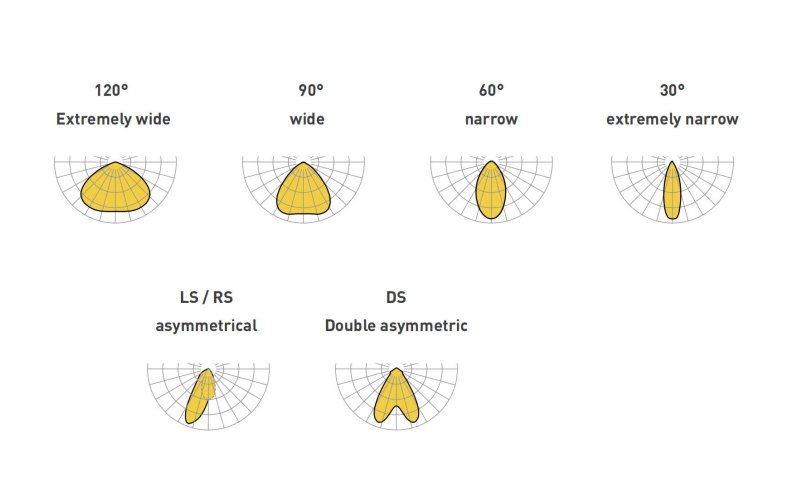

OPTICS

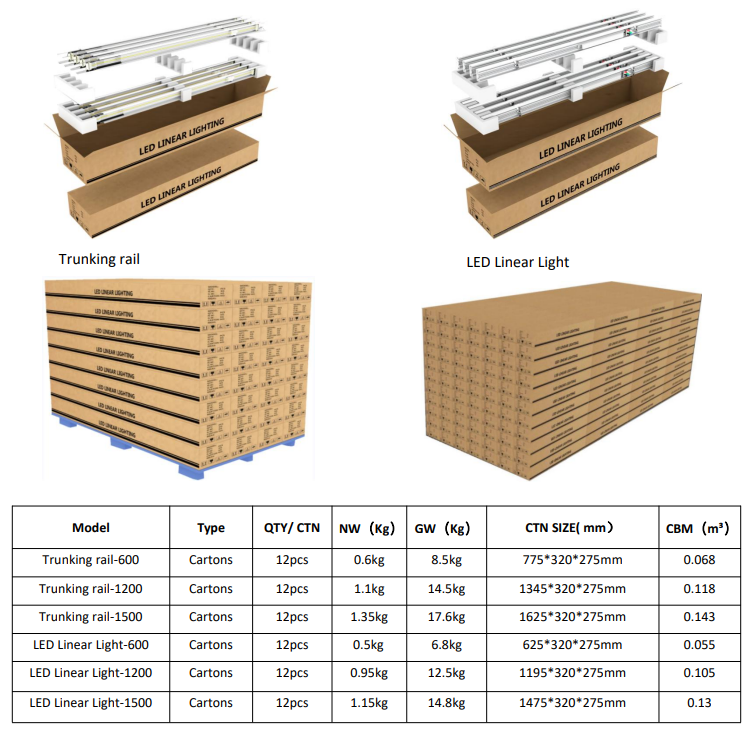

package materials



APPLICATION

Hypermarket,Supermarket,Retail stores,Showroom,warehouse etc.
