Shenzhen linear Lighting Co., Ltd

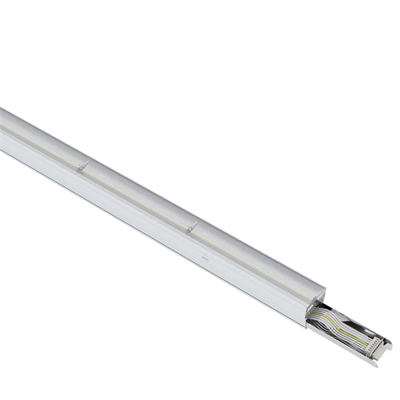

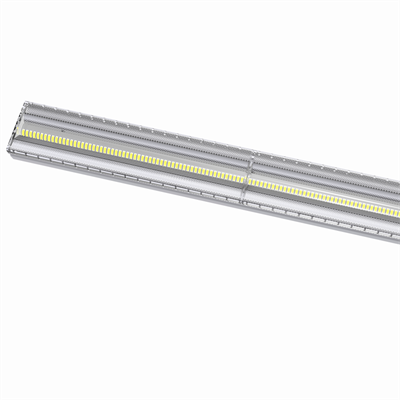

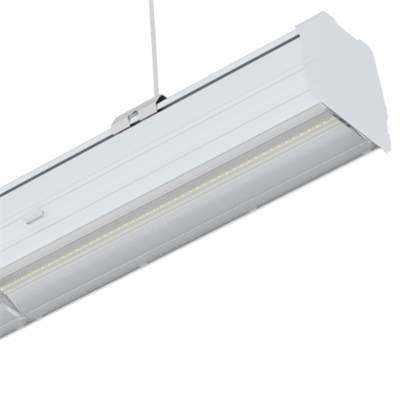

LS6870AE
Product benefits
1437mm - 60W AC220-240V
130LM / 150LM per watt energy saving and cost -effective

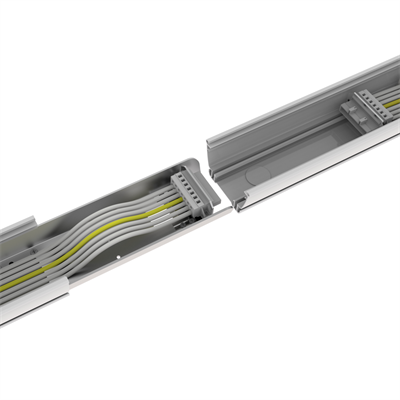

Pre-wired trunking rail, plug & play, tool-free installation
L , T , X node connector
Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
/ 3000K / 4000K / 5000K / 6500K
Emergency, Track spotlight module, Sensor module, Exit sign module
Cord / chain / rod / surface mounted / mounting clip
Total power up to 3000W per line
Products DETAILS
LS6870AE
OKLED’s linear trunking system is an efficient and flexible lighting solution that can be used in a variety of applications including industrial, commercial and office environments. Its seamless link capability makes it ideal for installation in warehouses, offering a range of lighting options to meet different requirements. With a variety of luminaire elements, optics and functional modules, linear trunking systems are versatile lighting systems that deliver outstanding performance.
LS6870 LED lighting is designed to be optimized for commercial and industrial lighting applications to help not only improve safety and energy savings, but also help increase productivity and efficiency.
With LS6870 products, installation is a breeze and takes only 50 seconds to complete. This advantage brings more convenience to our customers.Choose OKLED for your lighting needs and enjoy the benefits of our efficient and versatile linear trunking systems and LS6870 products
|
Model No. |
LS6870 |
|
Outer Dimensions |
577/1150/1437MM |
|
Dip Switch to |
35W/40W/45W/50W/55W/60W/65W/70Woptional |
|
Input Voltage |
220-240V AC |
|
Input Current |
0.4A max |
|
Mains Frequency |
50/60HZ |
|
PF (at 230 V, 50 Hz) |
0.9 |
|
Dimming |
0-10V，dali2 |
|
Type of Protection |
IP20 |
|
Ambient Temperature |
-25-40℃ |
|
Storage Temperature |
-40-85℃ |
|
Emergency Option |
Support external emergency or built-in battery |
|
Warranty |
5 years |
OPTICS
package materials
APPLICATION
Hypermarket,Supermarket,Retail stores,Showroom，warehouse etc.
